Replacing an ABS Module on a Toyota Camry

Eric O. from South Main Auto is back with an informative, no-nonsense walkthrough for automotive enthusiasts. This time, he tackles a faulty ABS module on a 2007 Toyota Camry. In this article, we’ll follow Eric’s step-by-step process to diagnose and replace the ABS module, offering practical insights and expert tips.

If you’ve ever struggled with ABS issues, this guide is for you.

Step 1: The Problem and Plan

Eric starts by explaining the issue: the ABS module on this 2007 Camry has failed. Rather than replacing the entire hydraulic unit—a labor-intensive and messy process—he opts to replace just the electronic module. This approach, commonly used on General Motors vehicles, saves time and eliminates the need to bleed the brakes.

Eric secures a salvaged ABS module for the job. To avoid compatibility issues, he stresses the importance of matching part numbers exactly, especially since this Camry lacks traction control. “Get the exact match,” he advises, underscoring the need for precision in repairs.

Step 2: Removing the Old Module

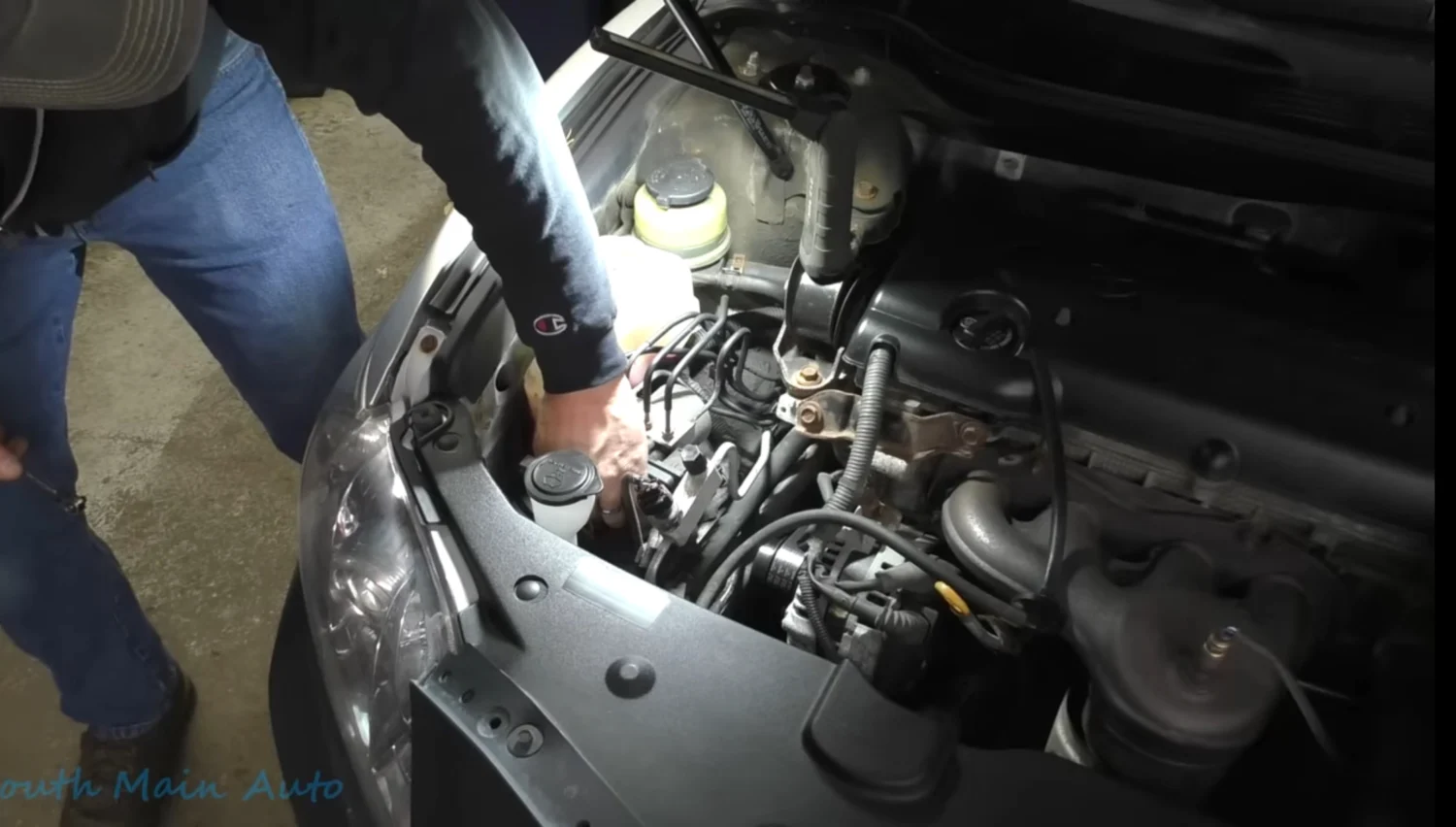

The old module is held in place by four inverted Torx screws, and Eric uses a methodical approach to remove them. He emphasizes that in cases where screws are seized, you can use a Dremel tool to cut through the old module, leaving the screw stubs accessible for removal. Fortunately, this wasn’t necessary here.

With the module out, Eric examines the connections and notes the solenoids and valves. “Each wheel has its own dump and isolation solenoids,” he explains. The damaged module reveals physical wear, confirming the earlier diagnosis.

Step 3: Installing the Salvaged Module

Eric installs the salvaged module with ease, tightening it securely and reconnecting the wiring harness. His attention to detail shines as he explains the calibration process required after installation. The new module must sync with the vehicle’s systems, including the yaw rate and steering angle sensors, to function correctly.

Step 4: Calibration Process

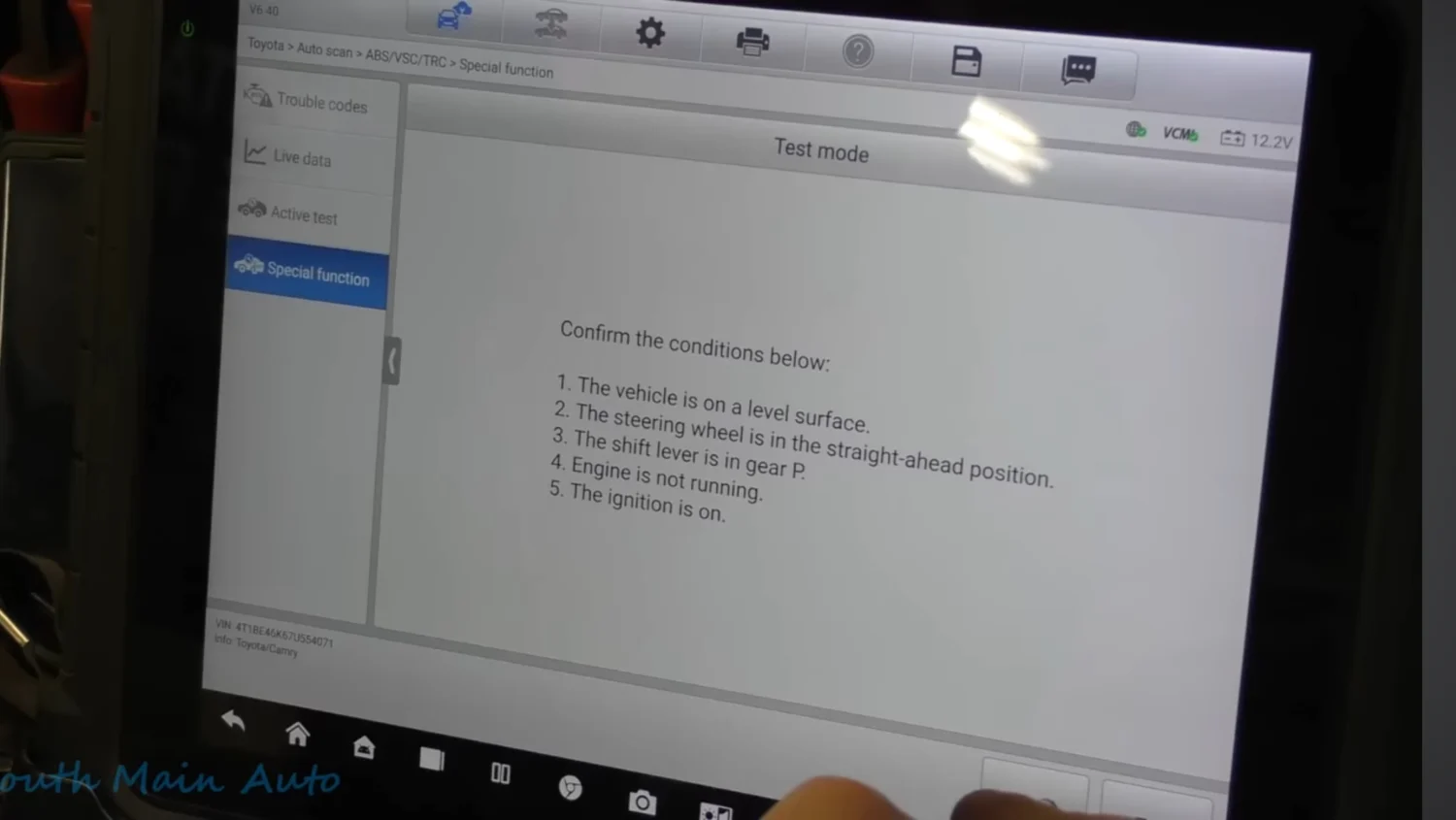

Using the vehicle’s diagnostic tool, Eric follows the service manual’s steps to calibrate the ABS module. This includes:

• Ensuring the vehicle is stationary and level.
• Setting the ignition to “on” (without starting the engine).
• Waiting for the ABS and Vehicle Stability Control (VSC) lights to flash, indicating a successful calibration.

Eric highlights that the process doesn’t require a test drive—a relief for anyone looking to save time.

Step 5: Post-Repair Checks

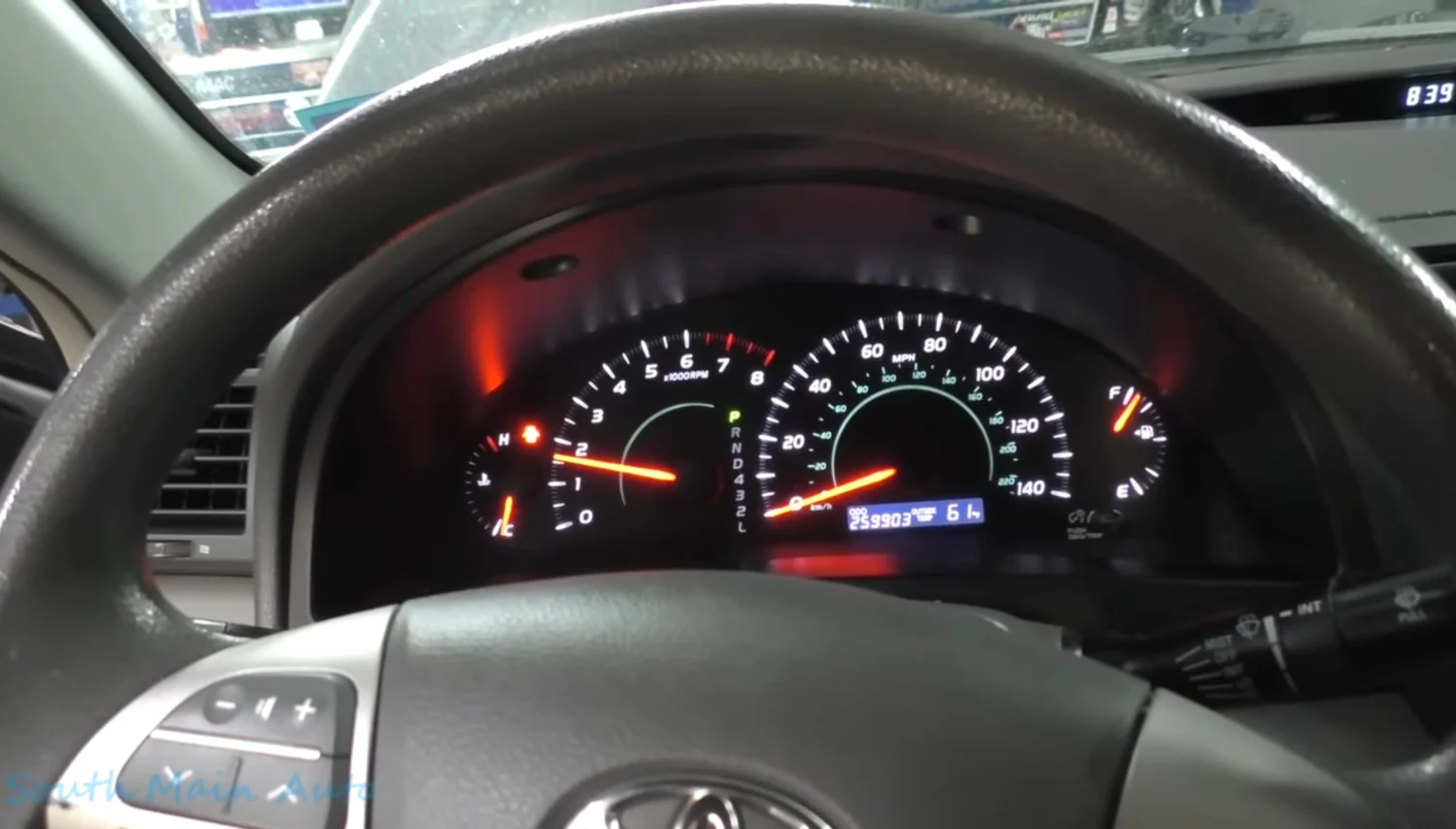

After calibration, Eric performs a system scan to ensure no lingering error codes. A historical “loss of communication” code appears in the instrument panel, likely caused by unplugging the old module. He clears the code and verifies that the system is functioning as expected.

Tips and Observations

Common Issue: Eric notes that ABS module failures are common in Toyota Camrys of this era. He recommends considering used modules as a cost-effective solution.

Rust Concerns: For those in the Rust Belt, Eric warns that removing ABS modules can be a challenge due to corroded screws and fittings. Having a Dremel or similar tool handy can make all the difference.

DIY Mindset: “If I can do it, you can do it,” Eric says, encouraging viewers to take on repairs with confidence.

Eric’s Final Thoughts

After completing the repair, Eric takes the Camry for a shakedown drive to confirm everything is working properly. Satisfied with the results, he wraps up the project, noting that the job was straightforward and a success.

Watch the Full Video

Want to see Eric in action? Check out the full video on his YouTube channel, South Main Auto, here: Crazy Cluster Toyota Camry Part II.
